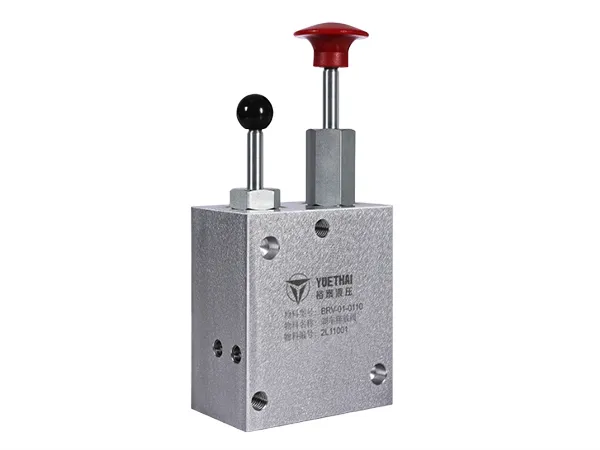

ESL Brake Release Valve

Hydraulic valve blocks for smooth control of scissor lift

ESL Brake Release Valve
  • ESL Brake Release Valve
  • ESL Brake Release Valve

    • ESL Brake Release Valve

    Hydraulic valve blocks for smooth control of scissor lift

    • Modular, compact design for safe and reliable hydraulic control
    • Patented design with an integrated travel counterbalance valve to improve overall platform stability
    • High-efficiency construction reduces energy consumption, extending equipment operating time
    Request a Quote
    Applications

    Used in hydraulic scissor lift platforms, this valve block provides smooth and reliable control of emergency brake release during travel. Built for durability and safety, it ensures stable operation and contributes to the overall efficiency of the operation of lift system.

    Specifications
    Pressure 250bar
    Flow Rate 2mL/stroke
    Fluid Temperature Range -20℃～100℃
    Ambient Temperature Range -20℃～80℃
    Oil Viscosity Range ISO 20～400mm²/s
    Internal Leakage 3 ~ 5drops/min
    Weight 0.67kg
    Join our newsletter for latest hydraulic updates & trends

    Our MCM-E series electric main control valve block uses an integrated cartridge valve structure with a built-in travel balance valve. It enhances overall machine stability and provides precise lifting and steering control for electric-drive scissor lifts.

    Our CCM-2 series cylinder control valve block delivers high working efficiency, helping reduce machine energy consumption and extend operating time. It is designed for lift cylinders, offering pressure holding and proportional lowering speed control for scissor lift platforms.

    Our ESL series brake release valve, a patented product with an integrated travel balance valve, improves overall stability and can be used to safely release travel brakes during emergency situations on hydraulic scissor lifts.
