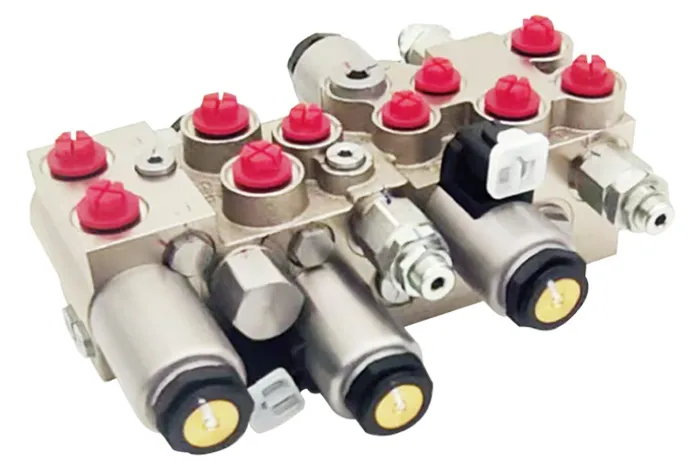

DCF20 Scissor Lift Control Valve

Hydraulic valve blocks for smooth control of lifting, lowering, travel direction and speed of scissor lift

DCF20 Scissor Lift Control Valve
  • DCF20 Scissor Lift Control Valve
  • DCF20 Scissor Lift Control Valve

    • DCF20 Scissor Lift Control Valve

    Hydraulic valve blocks for smooth control of lifting, lowering, travel direction and speed of scissor lift

    • Modular, compact design engineered for safe and reliable hydraulic control
    • Patented valve block with integrated travel counterbalance valve to enhance overall machine stability
    • Designed to reduce pressure loss by over 20% compared to cartridge valve solutions, improving energy efficiency and extending operating time
    Request a Quote
    Applications

    Developed for hydraulically driven scissor lift platforms, this control valve manages all essential functions of the aerial work platform such as lifting and lowering operations, precision steering control, brake management as well as travel direction and speed adjustment (fast and slow modes).

    Specifications
    Max. Operating Pressure 250bar
    Rated Flow 20L/min
    Voltage DC20V±10%
    Fluid Temperature Range -30℃～110℃
    Ambient Temperature Range -30℃～110℃
    Surface Treatment Nickel plated
    Oil Viscosity Range ISO 20～400mm²/s
    Join our newsletter for latest hydraulic updates & trends

    Our MCM-E series electric main control valve block uses an integrated cartridge valve structure with a built-in travel balance valve. It enhances overall machine stability and provides precise lifting and steering control for electric-drive scissor lifts.

    Our CCM-2 series cylinder control valve block delivers high working efficiency, helping reduce machine energy consumption and extend operating time. It is designed for lift cylinders, offering pressure holding and proportional lowering speed control for scissor lift platforms.

    Our ESL series brake release valve, a patented product with an integrated travel balance valve, improves overall stability and can be used to safely release travel brakes during emergency situations on hydraulic scissor lifts.
