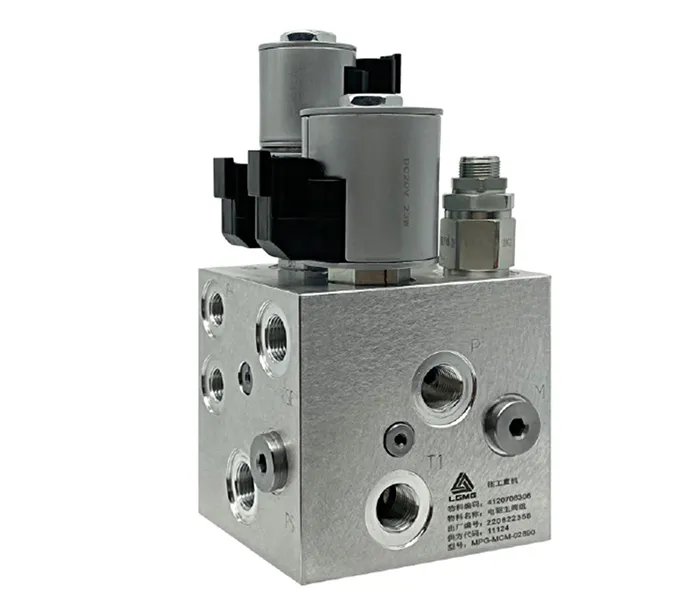

MCM-E Scissor Lift Electric Drive Main Valve

Hydraulic valve blocks for smooth control of lifting, lowering, travel direction and speed of scissor lift

MCM-E Scissor Lift Electric Drive Main Valve
  • MCM-E Scissor Lift Electric Drive Main Valve
  • MCM-E Scissor Lift Electric Drive Main Valve

    • MCM-E Scissor Lift Electric Drive Main Valve

    Hydraulic valve blocks for smooth control of lifting, lowering, travel direction and speed of scissor lift

    • Modular, compact design for safe and reliable hydraulic control
    • Patented design with an integrated travel counterbalance valve to improve overall platform stability
    • High-efficiency construction reduces energy consumption, extending equipment operating time
    Request a Quote
    Applications

    Designed for electric scissor lift platforms, this hydraulic control valve ensures smooth lifting and lowering, along with precise steering control, enhancing safety, stability, and efficiency during elevated operations.

    Specifications
    Max. Operating Pressure 250bar
    Rated Flow 20L/min
    Voltage DC20V±10%
    Fluid Temperature Range -30℃～110℃
    Ambient Temperature Range -30℃～110℃
    Oil Viscosity Range ISO 20～400mm²/s
    Join our newsletter for latest hydraulic updates & trends

    Our MCM-E series electric main control valve block uses an integrated cartridge valve structure with a built-in travel balance valve. It enhances overall machine stability and provides precise lifting and steering control for electric-drive scissor lifts.

    Our CCM-2 series cylinder control valve block delivers high working efficiency, helping reduce machine energy consumption and extend operating time. It is designed for lift cylinders, offering pressure holding and proportional lowering speed control for scissor lift platforms.

    Our ESL series brake release valve, a patented product with an integrated travel balance valve, improves overall stability and can be used to safely release travel brakes during emergency situations on hydraulic scissor lifts.
