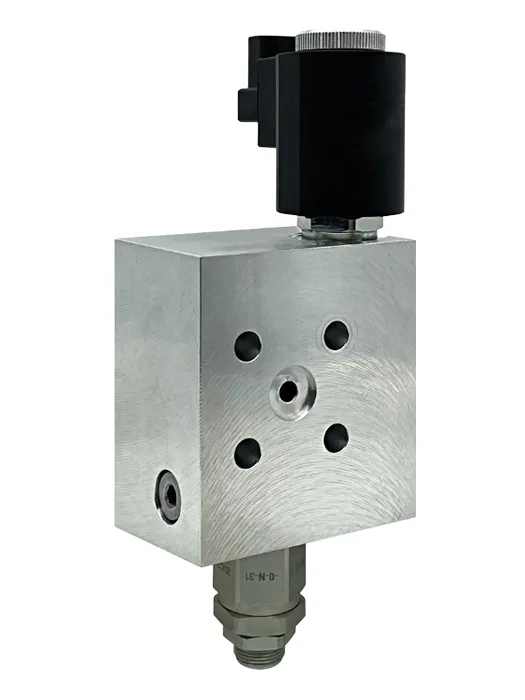

CCM-1 Lift Cylinder Control Valve Block (Upper Cylinder)

Hydraulic valve blocks for smooth control of lifting and lowering of scissor lift

CCM-1 Lift Cylinder Control Valve Block (Upper Cylinder)
  • CCM-1 Lift Cylinder Control Valve Block (Upper Cylinder)
  • CCM-1 Lift Cylinder Control Valve Block (Upper Cylinder)

    • CCM-1 Lift Cylinder Control Valve Block (Upper Cylinder)

    Hydraulic valve blocks for smooth control of lifting and lowering of scissor lift

    • Modular, compact design for safe and reliable hydraulic control
    • Patented design with an integrated travel counterbalance valve to improve overall platform stability
    • High-efficiency construction reduces energy consumption, extending equipment operating time
    Request a Quote
    Applications

    This lift cylinder control valve block is designed for scissor lift platforms, providing precise control of the upper lift cylinder during raising and lowering. With pressure-holding capability and controlled lowering speed, it ensures stable operation, enhanced safety, and improved platform efficiency.

    Specifications
    Max. Operating Pressure 240bar
    Rated Flow 20L/min
    Voltage DC24V±10%
    Fluid Temperature Range -20℃～80℃
    Ambient Temperature Range -20℃～80℃
    Oil Viscosity Range ISO 20～400mm²/s
