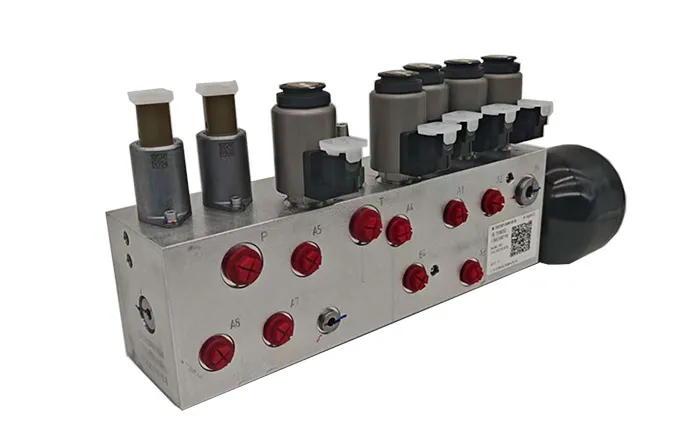

MPSB-W Pilot Control Valve Block

Hydraulic pilot manifold valve for compact excavators

MPSB-W Pilot Control Valve Block
  • MPSB-W Pilot Control Valve Block
  • MPSB-W Pilot Control Valve Block

    • MPSB-W Pilot Control Valve Block

    Hydraulic pilot manifold valve for compact excavators

    • Space-efficient, compact structure designed for easy installation on wheel excavators
    • Fully tested and validated to meet high performance and safety standards
    • Provides precise pilot pressure control and pressure-holding capability, with an optimized design that reduces operational noise and improves overall control; fully developed in-house for consistent quality
    Request a Quote
    Applications

    Designed for mini excavators, this pilot control valve block delivers stable, clean, and controllable low-pressure hydraulic oil to the pilot control system. It ensures responsive handling, safe operation, and improved energy efficiency, enabling operators to maintain precise control in confined or delicate work environments.

    Specifications
    Rated Pressure 40bar
    Rated Flow 20L/min
    Solenoid Valve Voltage DC14V±15%
    Proportional Valve Voltage DC12V±15%
    Fluid Temperature Range -20℃～80℃
    Ambient Temperature Range -20℃～80℃
    Oil Viscosity Range ISO 20～400mm²/s
    Join our newsletter for latest hydraulic updates & trends

    Yes. Our MPSB-SE pilot control valve block is designed for small excavators. It regulates pilot circuit pressure, maintains pressure stability, and eliminates pilot noise through optimized design. This ensures responsive, safe, and energy-efficient control.

    Our MPSB-ME pilot control valve block features a compact internal design and provides precise pressure control across all outlets. It delivers stable, clean, and controllable low-pressure hydraulic oil, making it ideal for large excavator pilot systems.

    The MPSB-W pilot control valve block is designed for wheeled excavators. It has been rigorously tested to control and maintain pilot circuit pressure, minimizes operational noise, and comes in a compact, installation-friendly design.
