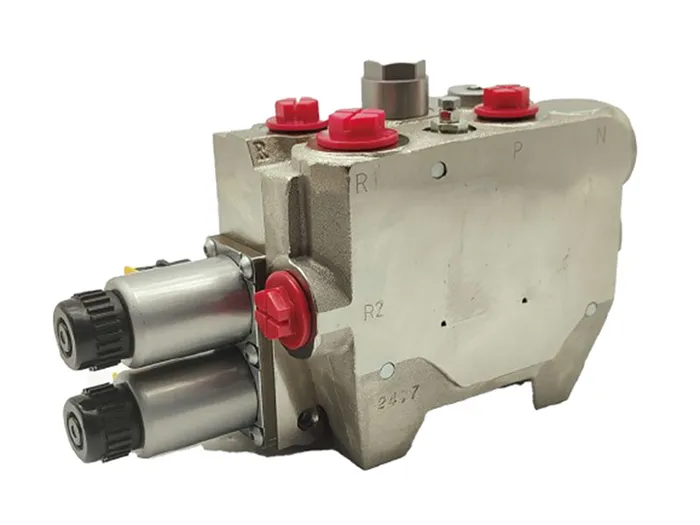

YEHL2 Electro-Hydraulic Lift Valve

Hydraulic control valve for precise control of tractor attachment lifting and lowering

YEHL2 Electro-Hydraulic Lift Valve
  • YEHL2 Electro-Hydraulic Lift Valve
  • YEHL2 Electro-Hydraulic Lift Valve

    • YEHL2 Electro-Hydraulic Lift Valve

    Hydraulic control valve for precise control of tractor attachment lifting and lowering

    The electro-hydraulic lift valve uses electro-proportional signals to precisely control spool opening, adjusting output flow at the working port with a capacity of up to 120 L/min. This enables accurate lifting and lowering of tractor attachments to meet various operational requirements in different industrial applications such as modern farming.
    Request a Quote
    Features
    • Modular, compact design that can be combined with multi-spool valves for integrated hydraulic control
    • Low pressure loss and high efficiency, reducing overall machine energy consumption
    • Electro-proportional flow control with high sensitivity, ensuring smooth, precise implement adjustments
    Specifications
    Max. Operating Pressure 250bar
    Rated Flow 120L/min
    Fluid Temperature Range -40℃～100℃
    Ambient Temperature Range -40℃～80℃
    Surface Treatment Nickel plated
    Oil Viscosity Range ISO 20～400mm²/s
    Applications

    Ideal for tractor depth control systems, the hydraulic lift valve enables proportional and precise lifting and lowering of attachments, maintaining consistent tillage depth for improved farming accuracy and productivity.
    Join our newsletter for latest hydraulic updates & trends

    Our SMWV-06 series direct-drive solenoid multi-spool valve is built with an integrated hydraulic lock structure, simplifying system hydraulic circuitry. It delivers safe and reliable operation while enabling synchronized control of harvesting table height, drum speed, and cleaning units, even under varying field load conditions.

    The YPMV2-C series load-sensing multi-spool valve delivers accurate flow control and well-coordinated actuation, using closed-loop hydraulic pressure feedback to keep the downforce consistent across every planting row. This helps achieve even seeding depth and improves seed germination results.

    Our YEHL2 series electrohydraulic hitch control valve features a modular, compact design and can be combined with a multi-spool valve for advanced operation. It provides smooth, electro-proportional flow control with high sensitivity, enabling the tractor’s depth control system to finely adjust the lifting and lowering of implements for precise and consistent plowing depth.
