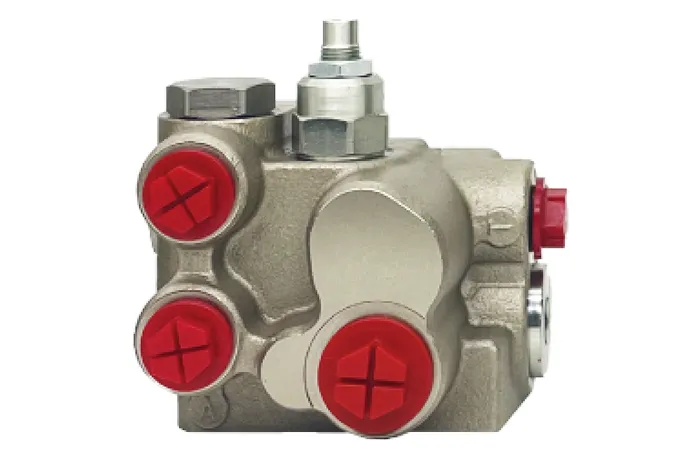

YSV-D Dual Accumulator Charging Valve

YSV-D Dual Accumulator Charging Valve

YSV-D Dual Accumulator Charging Valve

  • Modular, compact design offering safe and reliable operation
  • Low internal leakage with fast response, improving hydraulic system stability
  • Available in single- and dual-circuit versions, built to integrate smoothly with accumulator setups, ensuring reliable and efficient hydraulic performance
Request a Quote
Applications

The accumulator charging valve is widely used in mining trucks, rubber-tired vehicles, wheel loaders, backhoe loaders, motor graders, tractors, forklifts, and telehandlers. It ensures that the accumulator consistently maintains an adequate supply of high-pressure hydraulic oil, providing critical backup energy for the braking system. This guarantees effective emergency braking even if the engine shuts down, the hydraulic pump fails, or the main system malfunctions.

In normal operating conditions, the valve delivers fast and powerful braking support, enhancing both reliability and fail-safe safety performance of the braking systems in heavy-duty and mobile equipment.

Specifications
Charging Rate 10L/min
Low Limit Pressure 114bar
High Limit Pressure 138bar
System Pressure 210bar
Flow Rate 7.5~113.6L/min
Hydraulic Fluid Temperature Range -20℃～120℃
Ambient Temperature Range -40℃～80℃
Hydraulic Fluid General mineral oil (ISO 20～400mm²/s)

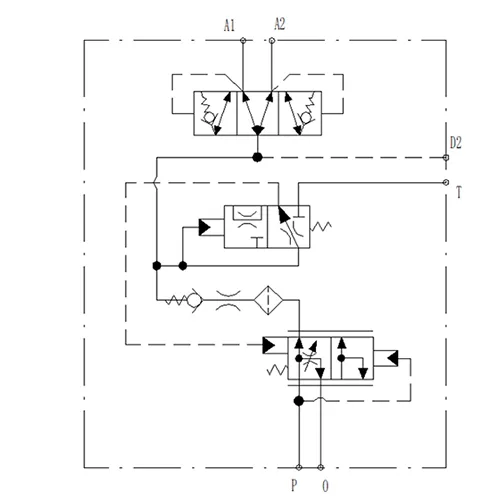

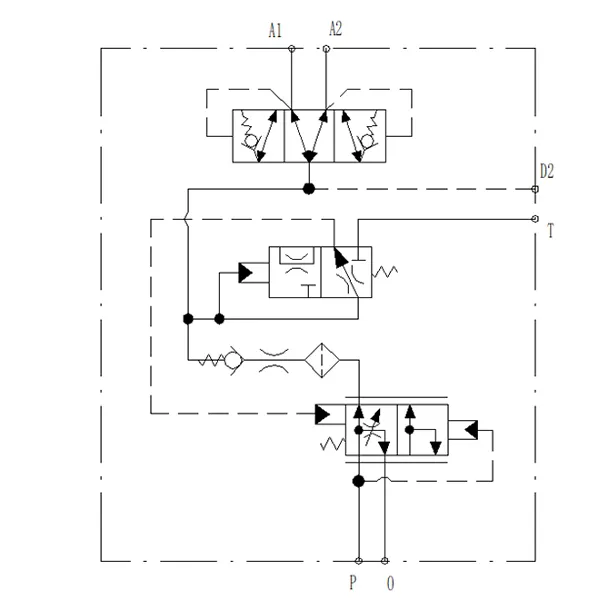

Hydraulic Schematic Diagram

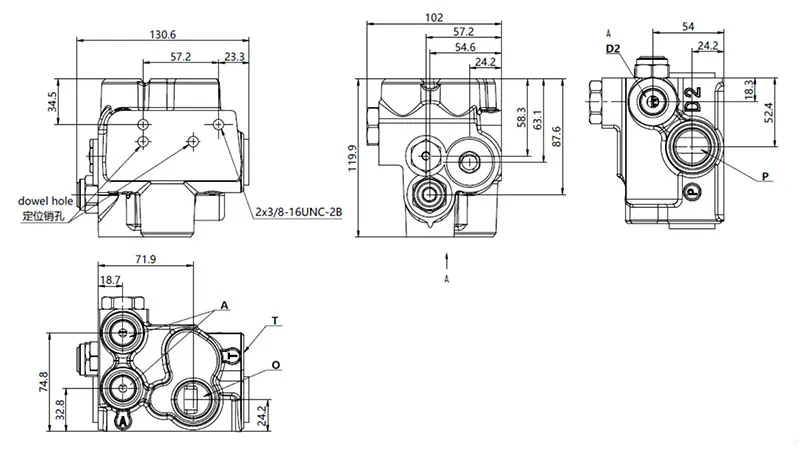

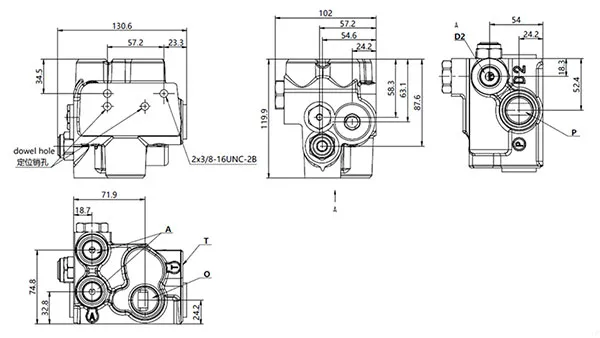

YSV-D Dual Accumulator Charging Valve
YSV-D Dual Accumulator Charging Valve

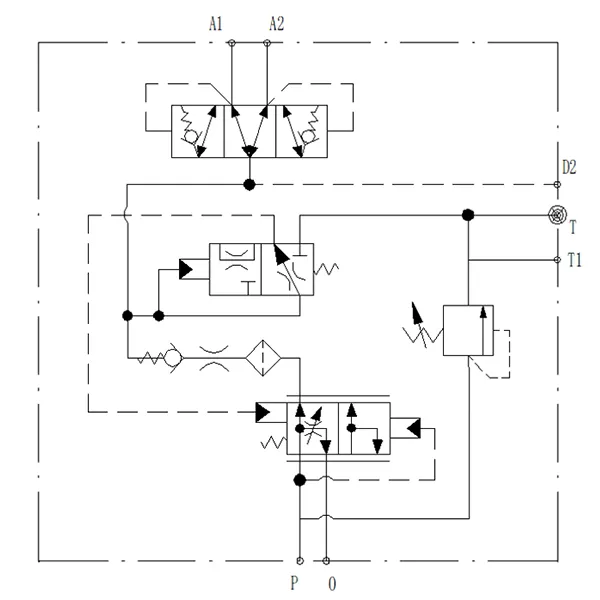

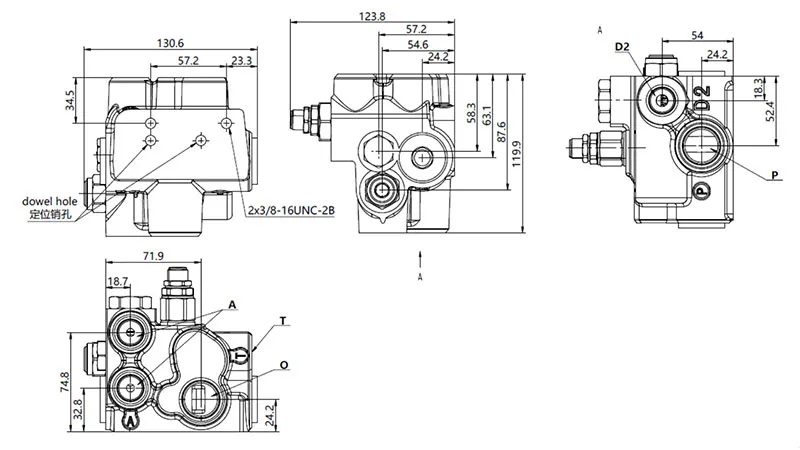

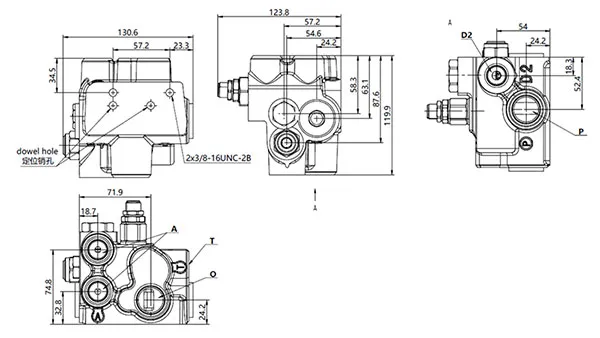

YSV-D-R Dual Accumulator Charging Valve
YSV-D-R Dual Accumulator Charging Valve
Join our newsletter for latest hydraulic updates & trends

The valve is built with a modular, compact, and durable design, specifically engineered for the heavy demands of construction machinery. Its low internal leakage and fast response help maintain braking system stability during frequent starts and stops, extending equipment service life and making it suitable for heavy-duty applications.

The accumulator charging valve ensures that the accumulator always maintains a reserve of high-pressure hydraulic oil, allowing safe and effective emergency braking even if the engine shuts down, the hydraulic pump fails, or the main system malfunctions. Its efficient modular construction is designed to withstand tough mining environments enhancing brake safety.

The valve continuously charges the accumulator with sufficient high-pressure hydraulic oil, providing critical backup energy for service brakes. This guarantees reliable emergency braking capability even during engine shutdowns, pump failures, or main system breakdowns, preventing brake system collapse in demanding conditions.
